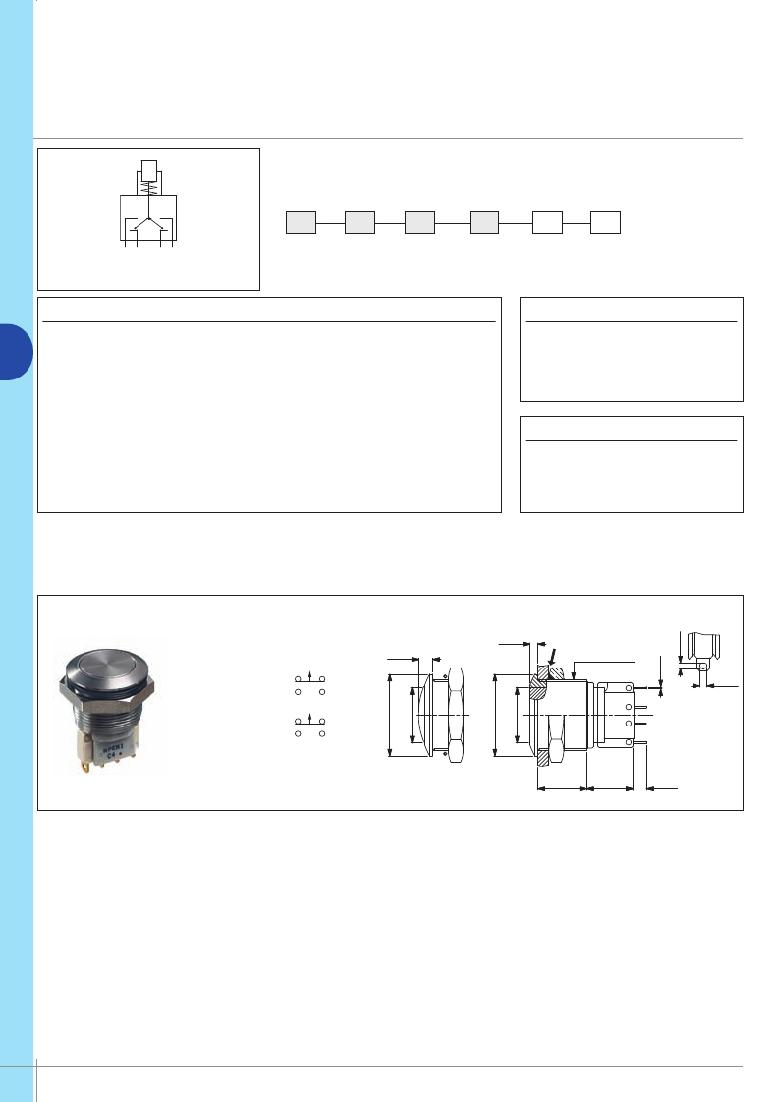

AV series
SECURITY PUSHBUTTON SWITCHES ? 19 MM (.748)
Momentary (NC/NO)
ORDER FORMAT
Series
AV
Bushing
diameter
19
Bush./act.
config.
L
Actuator
style
Bush./act.
matl
40
Contact/
terminals
7
3
1
2
4
P
B
See below
Combined NC/NO
SPECIFICATIONS
MATERIALS
B2
? Max. current/voltage rating with resistive load :
5A 250VAC - 5A 125VAC - 6.000 cycles
5A 15VDC - 3A 30VDC - 50.000 cycles
? Initial contact resistance : 100 m Ω max.
? Insulation resistance : 1.000 M Ω min. at 500VDC
? Dielectric strength : 2.000 Vrms 50 Hz min. between term. and frame
? Torque : 5 Nm min.- 14 Nm max. applied to nut
? Panel thickness : 1 (.039) to 9 mm (.354) max.
? Operating temperature : -20°C to +85°C
? Low level or mechanical life : 1.000.000 cycles
? Front panel sealing : IP65 and IP69K
? Packaging unit : 20 pieces
? Case : PA 6/6
? Contacts : silver
? Bushing : stainless steel (std)
? Actuator : stainless steel (std)
CUT - OUT
? Panel cut-out : ? 19,2 mm (.755)
? Min. pitch for matrix mounting :
30 mm x 30 mm (1.181x1.181)
All model numbers below are for switches with standard bushing/actuator material.
BASIC MODEL
Solder lug terminals - AV19..407
? O-ring
2.00
(.078)
Hex nut 22 (.866) across flats
Flat actuator
AV19LP407
Curved actuator
AV19LB407
3.60
(.141)
?19.00X1.00 SI
(.748DIAX1.00 IS)
2.00
(.078)
13.10
(.515)
12.60
(.496)
3.60
(.141)
BUSHING / ACTUATOR MATERIALS
For non-standard material, replace 40 with one of the following codes.
CODE
00
20
BUSHING
Nickel plated brass
Chrome plated brass
ACTUATOR
Nickel plated brass
Chrome plated brass
B2-86
